Gate Valve

  • BS5150 PN10 NRS CAST IRON GATE VALVE
BS5150 PN10 NRS CAST IRON GATE VALVE

BS5150 PN10 NRS CAST IRON GATE VALVE

  • Product description: OS&Y gate Valve, nrs gate valve
  • INQUIRY

TECHNICAL REQUIREMENT :
    ● Design and Manufacture  Conform to BS EN1171/BS5150
    ● Flange dimensions  Conform to EN1092-2 PN10
    ● Face to Face  dimensions Conform to  EN558-1 List 3
    ● Testing Conform to  EN12266-1
    ● Driving mode: hand wheel, bevel gear, gear, electric




Materials of parts

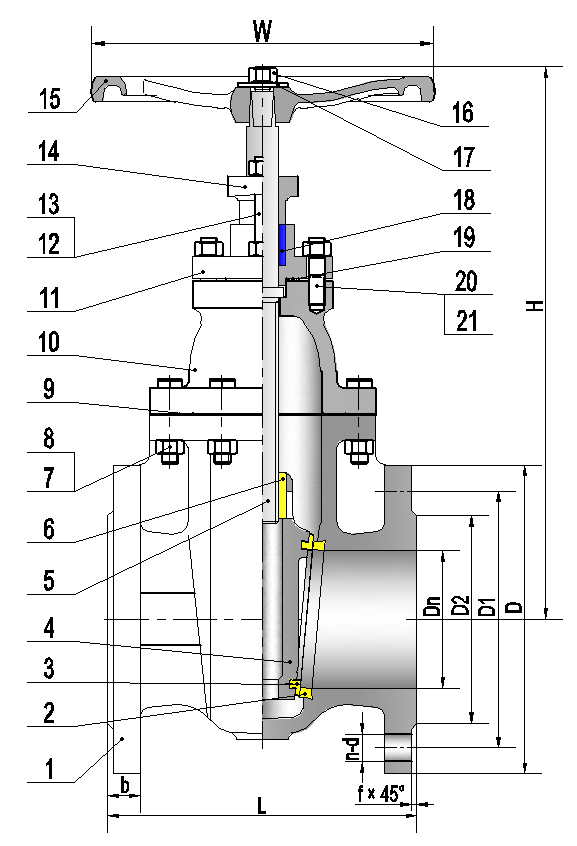

No. Part Name Material
1 BODY EN-GJL-250
2 SEAT RING ASTM B62
3 WEDGE RING ASTM B62
4 WEDGE EN-GJL-250
5 STEM ASTM A276 420
6 STEM NUT Mn-BRASS
7 BOLT CARBON STEEL
8 NUT CARBON STEEL
9 BONNET GASKET GRAPHITE+STEEL
10 BONNET EN-GJL-250
11 STUFFING BOX EN-GJL-250
12 BOLT CARBON STEEL
13 NUT CARBON STEEL
14 PACKING GLAND EN-GJL-250
15 HANDWHEEL EN-GJS-500-7
16 NUT CARBON STEEL
17 WASHER CARBON STEEL
18 PACKING GRAPHITE
19 WASHER GRAPHITE+STEEL
20 BOLT CARBON STEEL
21 NUT CARBON STEEL









Dimensions data (mm)
DN 50 65 80 100 125 150 200 250 300 350 400 450 500 600 700 800 900 1000
L 177.8 190.5 203.2 228.6 254 266.7 292.1 330.2 355.6 381 406 432 457 508 610 660 711 813
D 165 185 200 220 250 285 340 395 445 505 565 615 670 780 895 1015 1115 1230
D1 125 145 160 180 210 240 295 350 400 460 515 565 620 725 840 950 1050 1160
D2 99 118 132 156 184 211 266 319 370 429 480 530 582 682 794 901 1001 1112
b 20 20 22 24 26 26 26 28 28 30 32 32 34 36 40 44 46 50
n-d 4-19 4-19 8-19 8-19 8-19 8-23 8-23 12-23 12-23 16-23 16-28 20-28 20-28 20-31 24-31 24-34 28-34 28-37
f 3 3 3 3 3 3 3 3 4 4 4 4 4 5 5 5 5 5
H 312 325 346 410 485 520 625 733 881 1002 1126 1210 1335 1535 1816 2190 2365 2600
W 200 200 200 255 306 306 360 406 406 508 558 610 640 640 700 700 800 900
