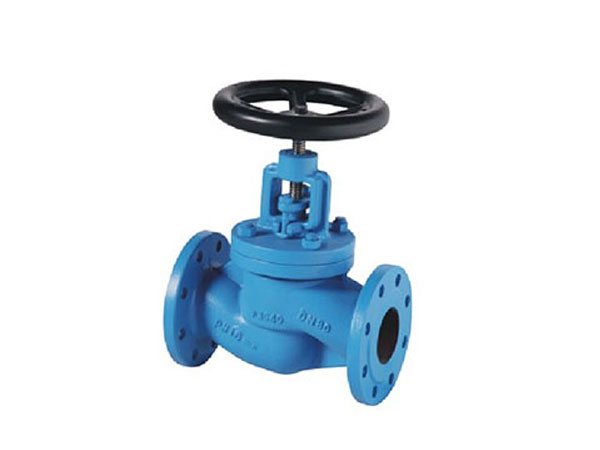

DIN3356 PN16 Cast Iron Globe Valve

DIN3356 PN16 Cast Iron Globe Valve

  • Product description: DIN3356-Cast-Iron-Globe-Valve
  • INQUIRY
● Design and Manufacture  Conform to DIN EN 13789
● Flange dimensions  Conform to EN1092-2 PN16
● Face to Face  dimensions Conform to EN558-1 list 1
● Testing Conform to  EN12266-1

Specification

No. Part Name Material Qingdao I-Flow Co., Ltd
1 Body EN-JL1040
2 Disk EN-JL1040
3 Seat ring 1Cr13/ZCuZn38Mn2Pb2
4 Stem 2Cr13
5 Bonnet EN-JL1040
6 Packing Graphite
7 Stem nut ZCuZn38Mn2Pb2
8 Handwheel QT400-18/STEEL


Dimensions data(mm)


DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300
L 130 150 160 180 200 230 290 310 350 400 480 600 730 850
D 95 105 115 140 150 165 185 200 220 250 285 340 405 460
D1 65 75 85 100 110 125 145 160 180 210 240 295 355 410
D2 46 56 65 76 84 99 118 132 156 184 211 266 319 370
b 14 16 16 18 18 20 20 22 24 26 26 30 32 32
n-d 4-14 4-14 4-14 4-19 4-19 4-19 4-19 8-19 8-19 8-19 8-23 12-23 12-28 12-28
f 2 2 3 3 3 3 3 3 3 3 3 3 3 4
H 206 206 217 245 250 275 294 325 377 453 530 635 690 750
W 100 100 120 160 160 200 200 240 280 320 400 450 450 500
